Team Project: Chengyun Wu, Tom Novak, John Mulvey, Lilibeth Arreola
Our project is named BreezeBREAK, we tried to create a shelter that people can sit and park bike along Lake Michigan. We created triangle shape of shelter and placed it face to the lake. I believe triangle is the most stable shape, it can protect people from the wind very well. Also, we added Acrylic between two wood post, this can allow people enjoy the lake view. On my drawing, I showed plan, a section from top to bottom, another section of side, and one section. I used 6 different types of line weight to illustrates the height of BreezeBREAK. I also added human figure right beside the elevation drawing to show how tall the BreezeBREAK is going to be. For the detail drawing, I lay out all the pieces that we used in the construction. I also have the detail of how these wood pieces are assembled.

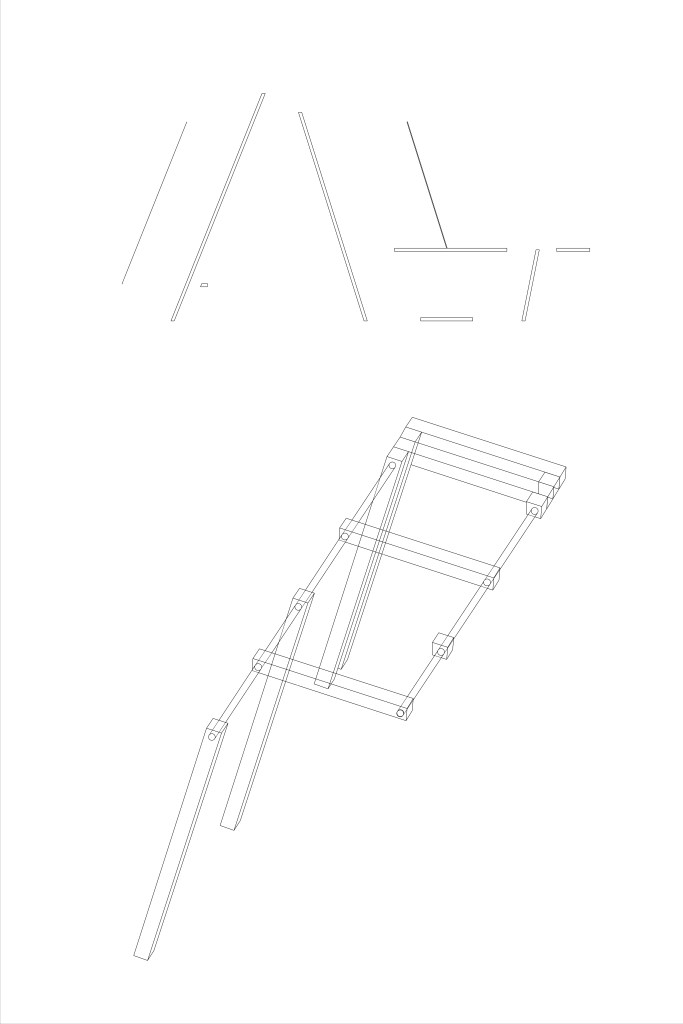

Axon:

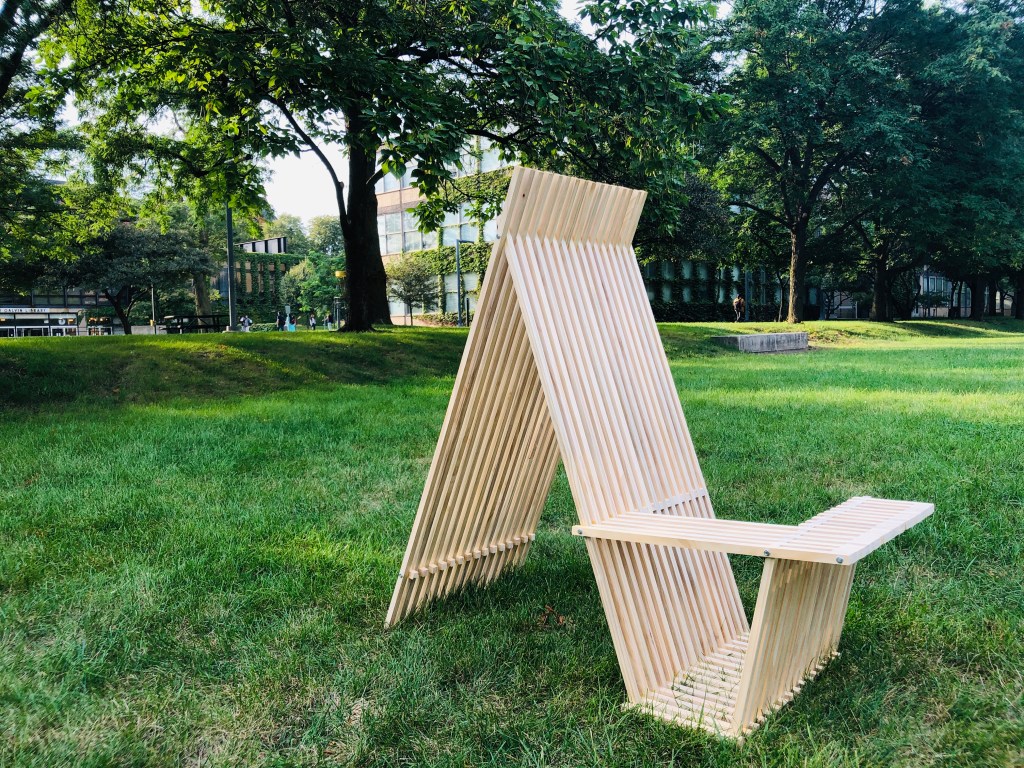

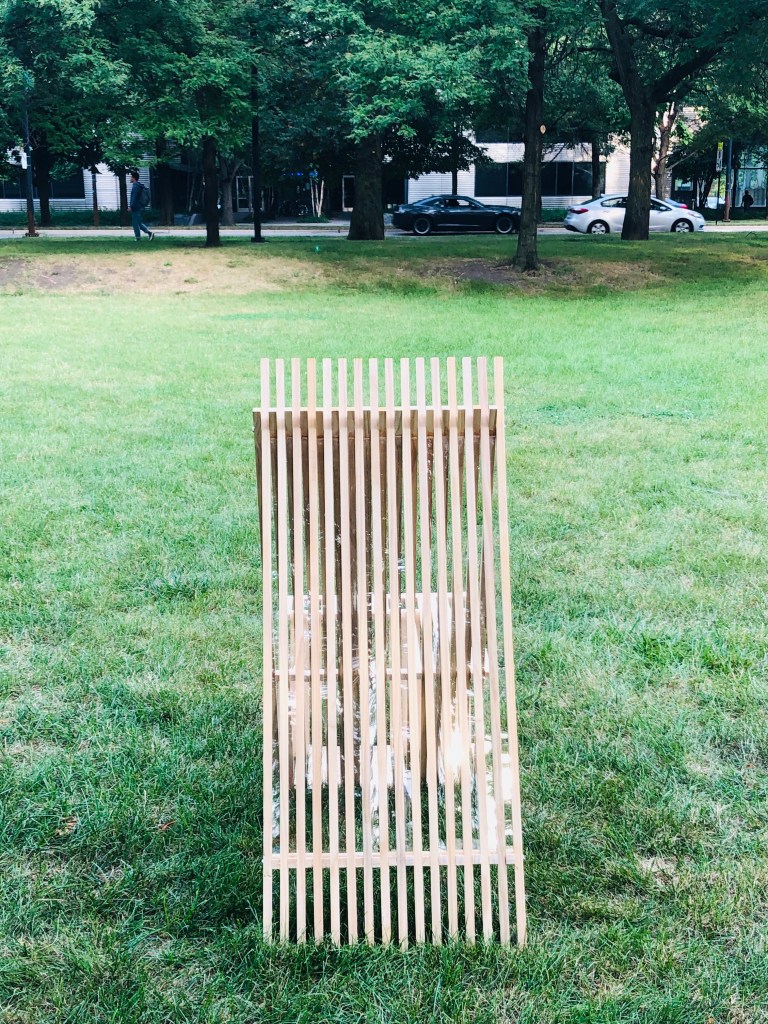

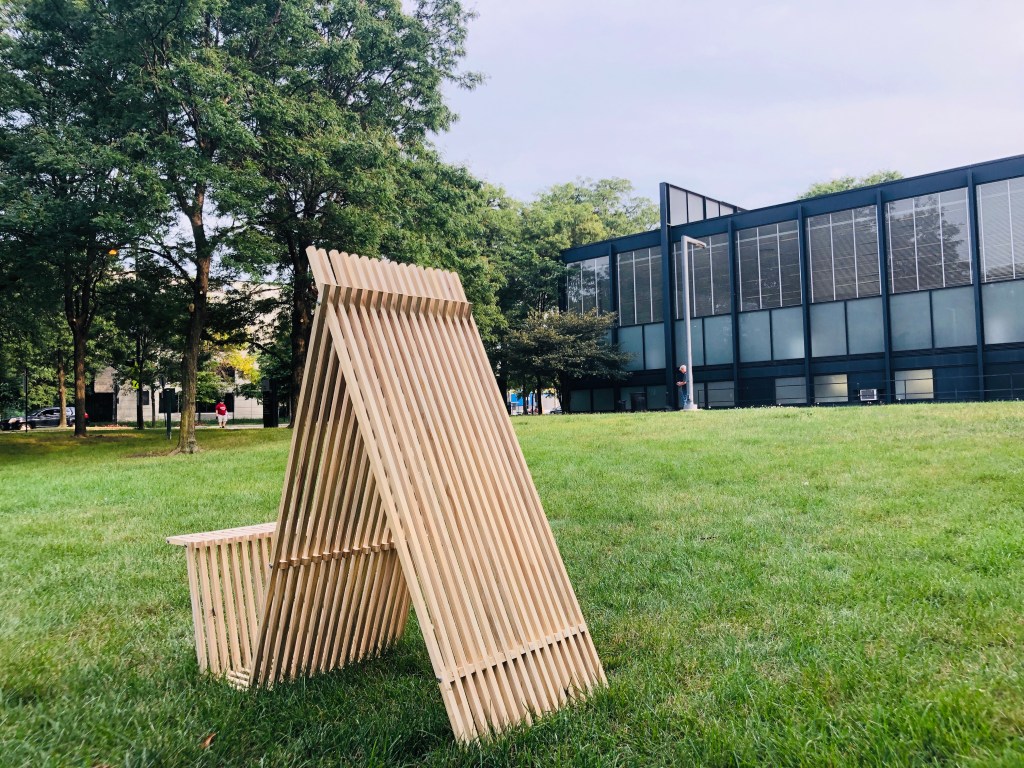

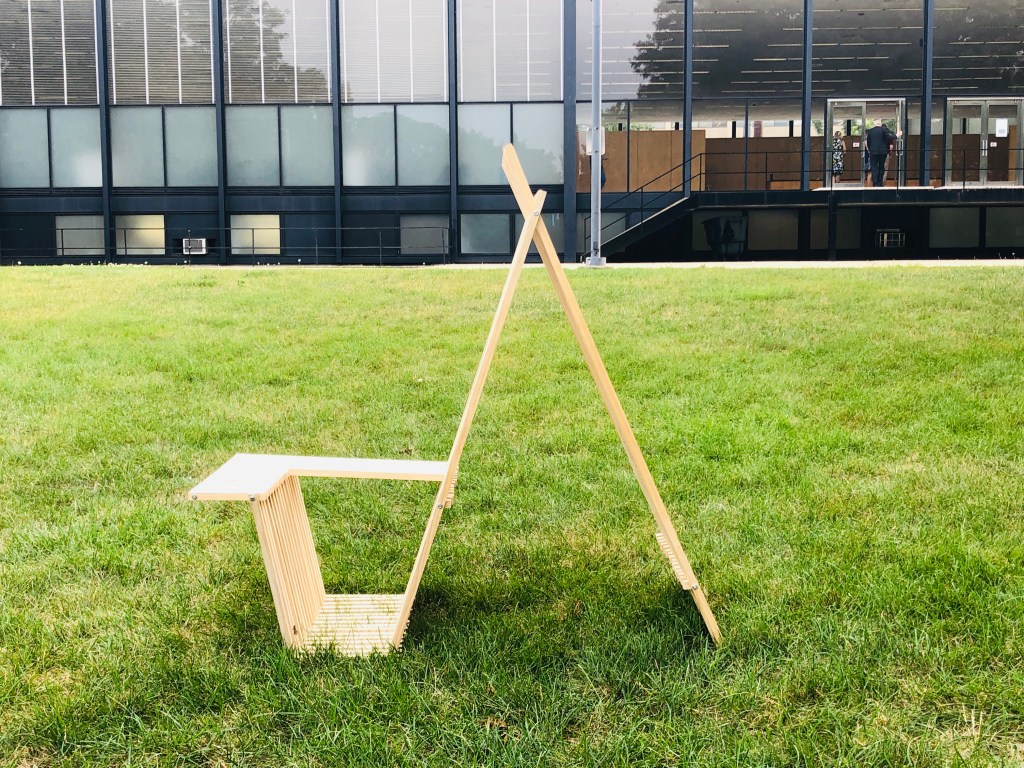

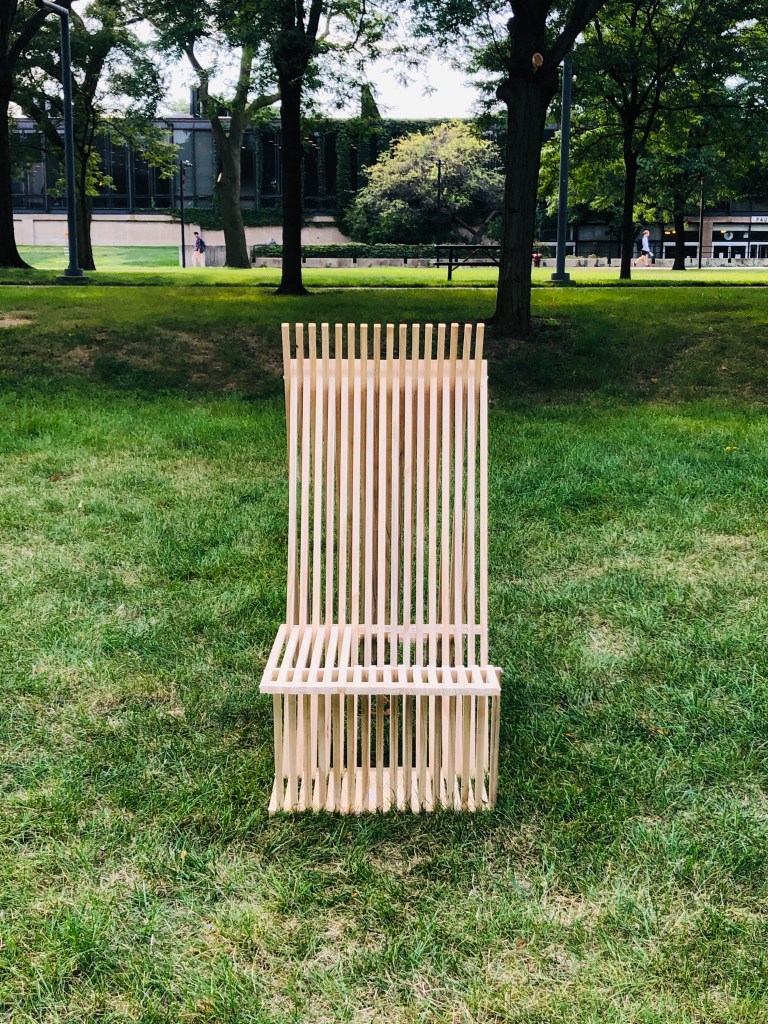

Different Views:
